| Material: | Cu With FR4 | Thickness: | 2.0MM |
|---|---|---|---|
| Cu Thickness: | 4OZ | Thermal Conductivity: | 0.128W(kg.k) |
| Insulating Strength: | 25(KV/mm) | Flame Retardant Rating: | 94V-0 |
| Temperature: | -40℃~105℃ | Withstand Voltage: | 2500V |
| Peel Strength: | 0.9N/mm | Dielectric Constant: | 3.8(f=60HZ) |
| Working Life: | 10 Years | ||
| Highlight: | circuit board manufacturers,making pcb boards |
||

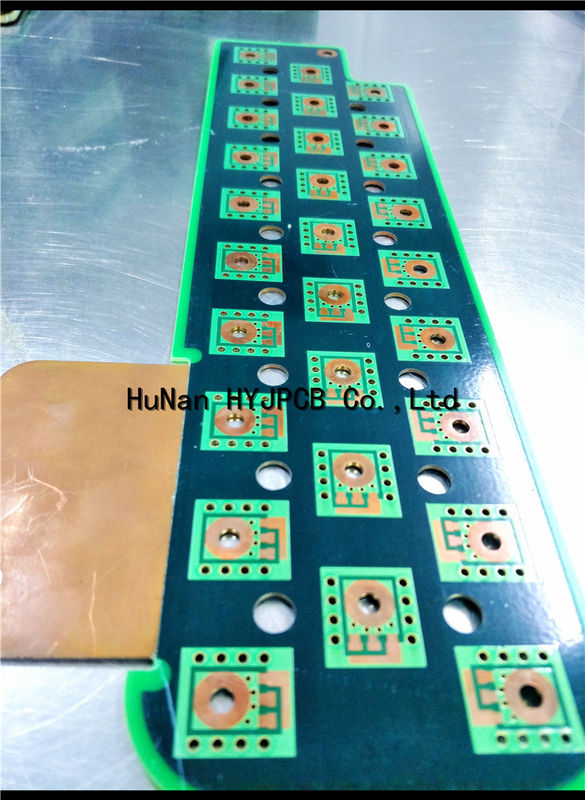

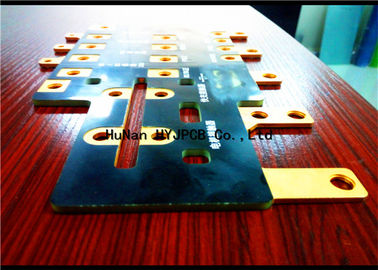

Military Aircraft Missile systems Bus bar MC Pcb Metal Core Pcb Print Circuit Board
Why us?
Quality
Our UL/Rohs standards insure quality assemblies from start to finish. Whether it's a simple custom product or a complex turnkey production run, Moko will adhere to the highest quality standards.
--------------------------------------------------------------------------------
Capable
Moko offers the latest in assembly capabilities and qualifications insuring that quality is built into every product we produce.
--------------------------------------------------------------------------------
Experience
When it comes to your build you want a partner you can depend on. Our management team has over 10years of combined industry knowledge. Our engineering team has over 7 years experience.
--------------------------------------------------------------------------------
Protecting your interests
Protecting your Intellectual Property is job one! Our staff of trained professionals are all working under a strict confidentiality contract and treat your important documentation as they would their own.
--------------------------------------------------------------------------------
Flexibility
We pride ourselves on our ability to custom tailor programs around our customers' needs. We take time to listen to your unique business needs and then set out to surpass them.
| PCB Type | Material Type | Material Brand | |||||||
| Single side pcb Double side pcb Multilayer pcb Single side pcb |
CEM-1 FR-4 Aluminum Copper Ceramic |
SY KB IL LianMao HongRen Arlon KingWong VT Laird 5052 Series |
|||||||
| The advantage of us | |||||||||
| 1 | We have our own, independent of the wastewater treatment system.Make sure there will be a very big development space and the stability of the production environment in the futurer | ||||||||
| 2 | Flexible operation, can be in the production of small batches.Also can produce large quantities.Can save production quickly. | ||||||||
| 3 | The urgent double sample production for 24 hours, The urgent Multilayer sample production for 48 hours.completely according to customer requirements | ||||||||
| About the Files | |||||||||
| 1 | You have gerber files or PCB files | ||||||||
| 2 | You have PCB samples. send to us the sample. we will help for free copy it | ||||||||
| How to calculate the price | |||||||||
| 1 | For example, your double sided PCB size is 100 mm * 200 mm wide, long double sided PCB price is $60 a square meters.So the calculation results 100MM*200MM*$60/1000000=$1.2 | ||||||||
| 1 inch=25.4mm | |||||||||
| About the transportation. | |||||||||
| All the quotation does not include the transportation cost | |||||||||
| 1 | You find a freight forwarding company to help you, When we finished the PCB ,We wiill send to your forwarder company directly .You directly to the transport charges paid to forwarder company | ||||||||
| 2 | We help you responsible for transport, freight included in the price.According to how much money a kilogram computation. | ||||||||
| 3 | In order to save costs.The best is you have familiar forwarder company | ||||||||
| Process Capability | ||||||||||||||
| Material Type: FR4/Aluminum/Ceramic/CEM-1/Copper/polytef | Cooper thickness: 0.5-12OZ | |||||||||||||
| Board Thickness: 0.2-6.0mm | Min hole size: 0.25mm( finished hole size) | |||||||||||||
| Min Line Width/spacing:0.08mm | Drilling accuracy:+/-0.05 | |||||||||||||
| Max working size:520*620mm(21.25x24.5inch) | Min Inner layer thickness:0.1mm | |||||||||||||
| Min thickness Board for HAL surface finished:0.4mm | Certificate: Rohs, Iso9001, UL(in certification) | |||||||||||||
| Min thickness 4 layer: 0.4mm | Min thickness 6 layer:0.6mm | |||||||||||||
| Min/Max layer count : 1/20 | Lamination evenness :+/-0.05mm | |||||||||||||
| Min SMD Pitch : 0.125mm | Min Dam Between Fine Pitch: >0.1mm | |||||||||||||
| Layer to Layer registration:<0.1mm | Impedance control:+/-5% | |||||||||||||
| Differential impedance:+/-10% | Board bow/twist tolerance:<0.7% | |||||||||||||
| Plating spect ratio: <8:1 | Plating COV: <10% | |||||||||||||
| Surface Finished: LF-HASL ,Immersion Gold/Tin/Silver ./Plating Gold/OSP, | PTH backlight : 9-9.5 level | |||||||||||||
| Solder Mask:Green , Red, Blue,White, Black,Yellow. | Plating extensibility:>15% | |||||||||||||
Company adopts domestic and international the most advanced metal materials, has provided the safeguard for manufacturing high quality products, more companies constantly update products provide a solid backing
