| Material: | Aluminum | Solder Mask: | White |
|---|---|---|---|
| Silkscreen: | Black | Use: | LED Lighting |
| Thickness: | 1.5mm | Copper Thickness: | 1oz |
| Thermal Conductivity: | 1.0w/m.k | ||
| High Light: | aluminum pcb manufacturer,aluminum printed circuit boards |
||

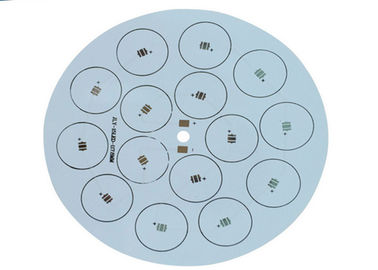

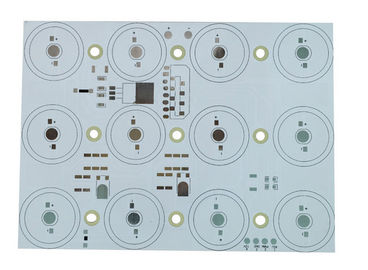

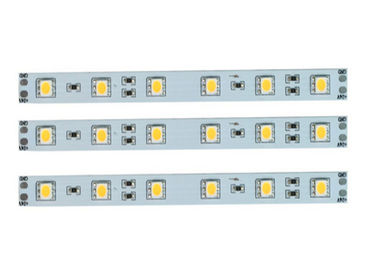

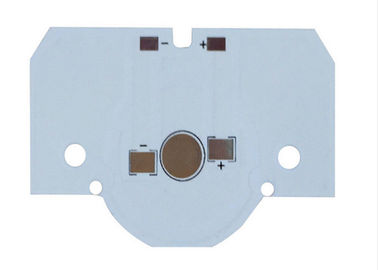

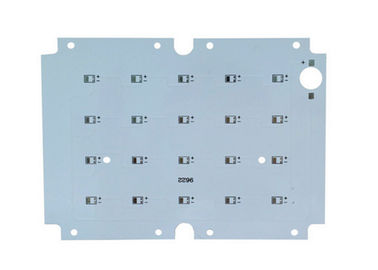

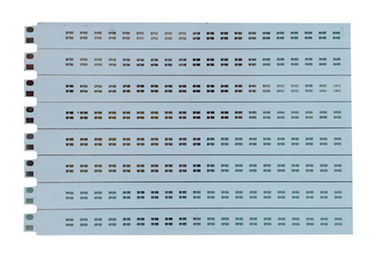

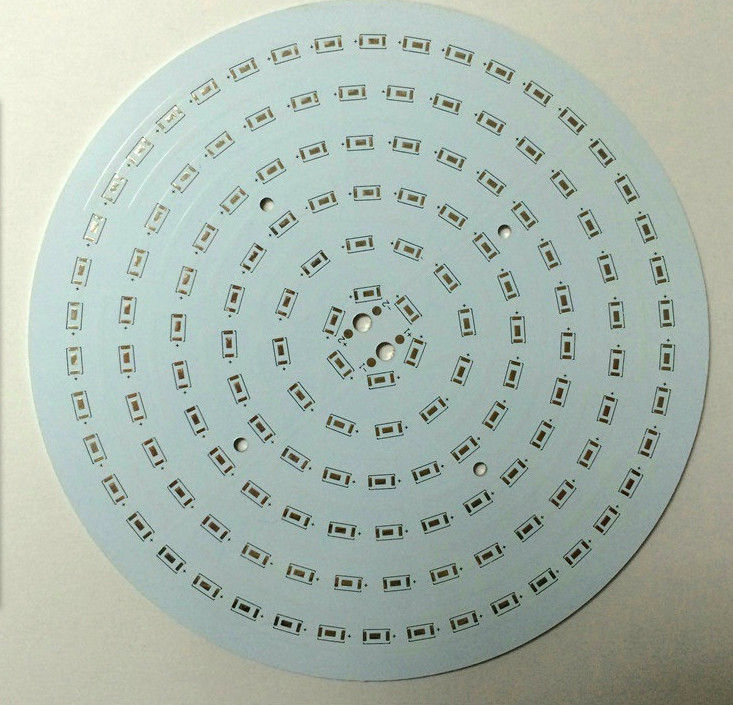

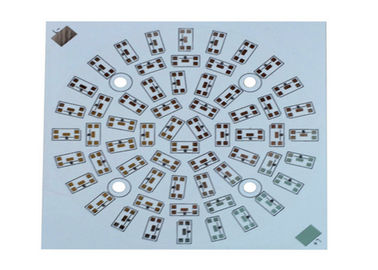

Aluminum Single Side PCB LED lighting aluminum pcb manufacturer aluminum circuit board
| PCB Type | Material Type | Material Brand | |||||||
| Single side pcb Double side pcb Multilayer pcb Single side pcb |
CEM-1 FR-4 Aluminum Copper Ceramic |
SY KB IL LianMao HongRen Arlon KingWong VT Laird 5052 Series |
|||||||
| The advantage of us | |||||||||
| 1 | We have our own, independent of the wastewater treatment system.Make sure there will be a very big development space and the stability of the production environment in the futurer | ||||||||
| 2 | Flexible operation, can be in the production of small batches.Also can produce large quantities.Can save production quickly. | ||||||||
| 3 | The urgent double sample production for 24 hours, The urgent Multilayer sample production for 48 hours.completely according to customer requirements | ||||||||
| About the Files | |||||||||
| 1 | You have gerber files or PCB files | ||||||||
| 2 | You have PCB samples. send to us the sample. we will help for free copy it | ||||||||
| How to calculate the price | |||||||||
| 1 | For example, your double sided PCB size is 100 mm * 200 mm wide, long double sided PCB price is $60 a square meters.So the calculation results 100MM*200MM*$60/1000000=$1.2 | ||||||||
| 1 inch=25.4mm | |||||||||
| About the transportation. | |||||||||
| All the quotation does not include the transportation cost | |||||||||
| 1 | You find a freight forwarding company to help you, When we finished the PCB ,We wiill send to your forwarder company directly .You directly to the transport charges paid to forwarder company | ||||||||
| 2 | We help you responsible for transport, freight included in the price.According to how much money a kilogram computation. | ||||||||
| 3 | In order to save costs.The best is you have familiar forwarder company | ||||||||
Specializing in the production of single/double sided aluminum circuit boards, LED aluminum plate, high-power aluminum plate, high thermal conductivity aluminum plate.Widely used in fluorescent lamp, the ball bubble lights. Absorb dome light, project-light lamp, wall lamp, street lamp, lawn lamp, tube lamp, tunnel lights, car lights, billboards, etc.
Process Capability
| Material Type: FR4/Aluminum/Ceramic/CEM-1/Copper/polytef | |||||||
| Board Thickness: 0.2-6.0mm | |||||||
| Min Line Width/spacing:0.08mm | |||||||
| Max working size:520*620mm(21.25x24.5inch) | |||||||
| Min thickness Board for HAL surface finished:0.4mm | |||||||
| Min thickness 4 layer: 0.4mm | |||||||
| Min/Max layer count : 1/20 | |||||||
| Min SMD Pitch : 0.125mm | |||||||
| Layer to Layer registration:<0.1mm | |||||||
| Differential impedance:+/-10% | |||||||
| Plating spect ratio: <8:1 | |||||||
| Surface Finished: LF-HASL ,Immersion Gold/Tin/Silver ./Plating Gold/OSP, | |||||||
| Solder Mask:Green , Red, Blue,White, Black,Yellow. |
| Cooper thickness: 0.5-12OZ | ||||||
| Min hole size: 0.25mm( finished hole size) | ||||||
| Drilling accuracy:+/-0.05 | ||||||
| Min Inner layer thickness:0.1mm | ||||||
| Certificate: Rohs, Iso9001, UL(in certification) | ||||||
| Min thickness 6 layer:0.6mm | ||||||
| Lamination evenness :+/-0.05mm | ||||||
| Min Dam Between Fine Pitch: >0.1mm | ||||||
| Impedance control:+/-5% | ||||||
| Board bow/twist tolerance:<0.7% | ||||||
| Plating COV: <10% | ||||||
| PTH backlight : 9-9.5 level | ||||||
| Plating extensibility:>15% |
